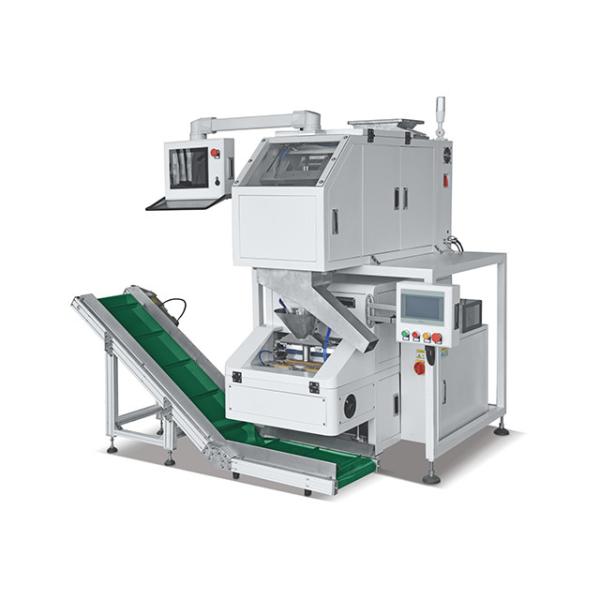

Intergrated design visual counting packing machine for small precision product

Name: Intergrated design visual counting packing machine for small precision product
Brand: DGAX
Price: 1 USD

Cheap Intergrated design visual counting packing machine for small precision product for sale

Brand Name : DGAX

Model Number : AX-PC25

Certification : CE

Place of Origin : Dongguan,China

MOQ : 1set

Price : Contact Us

Payment Terms : T/T

Supply Ability : 100sets/month

Delivery Time : 15-35days

Packaging Details : Foam inner+ outside wooden case

Function : Counting,filling,packing,sealing,labeling...

Application : Precision screw,3C connector,precise granule...

Automatic Grade : Automatic

Voltage : AC220V±10% 50HZ/60HZ

Warranty : 1 Year

Core Components : Servo Motor, PLC, cylinder

After-sales Service Provided : Video technical support, Field installation, commissioning and training, Online support, Field maintenance and repair service, Free spare parts, 1 Years

Efficiency : 5000-10000pcs/min

Detectabie size : 2-30mm

Accuracy : 0.03%,no negative error

Contact Now

Features Overview of Intergrated design visual counting packing machine for small precision product

Sepecification Parameter

Model	AX-PC25
Detection Size	2-30mm
Bag size	150-250mm
Efficiency	5000-10000pcs/min
Counting accuracy	0.05%,only positive error
Packaging Material	PE Film material
Power requirements	AC220V±10% 50HZ/60HZ

Princeple

Specially design for precision products like phone screw,small 3C plug,connectors...

High speed CCD image head,the program calculates the product area and then reflects the product on the display screen. After reaching the preset quantity,it will automatically stop blanking and start the packaging machine.The control Precision error is within 0.05%. The speed depends on the size of the product.

Applicable Industry

The production line covers a wide ranged of hardware,fasterners,plastic rubber,sealing rings,3C precision small screws,small metal parts,5G terminals,auto parts,electronic components,special-shaped parts,toy parts,home appliances,lock parts,lighting accessories,aviation accessories,sports and fitness equipment and other different products.

Machine Detail

CCD camera counting

We use CCD camera to check quantity of the products to avoid errors which by weighing machine.

Japanese brand "TOSHIBA" camera.

Counting in real time.

High accuracy! Hign speed!

CCD camera counting

Touch control screen

Multiple channel for accurate counting

PE film economic packing material

Adavantages

Visual counting packaging machine adavantages

1.Vision points-solving large errors in single weight of material.

2.High-speed imaging:8000*10000pcs/min.

3.High precision:accurancy up to 0.03%,no negative deviation(reduce customer complains).

4.Computer data can be stored in thousands of product items quickly.

5.Quickly switch materials with one key,ready-to-use.

6.Convenient start up and easy operation.

7.Independent production and quality can be controled.

8.It can be connected with ERP or MES system and product information can be traced.

9.High speed image retrieval,whole heap counting and logical distribution,which are based on high speed vision technology.

Intelligence:

With powerful learning functions,the machine can automatically recognize the particle object,and can be easily accessed and used after slight manual adjustments and save.

Precision:

Precision:With leading high precision in the field of industrial product.The procision of silver contact products can even reach over 99.95%

High-speed:

High speed for counting particles.The efficiency of counting small particles of materials(such as shirt buttons,silver
contacts,phone screws,ect.)can reach up to 30000pcs/min with accurate counting.

Flexible:

With one click cleaning and quick swithching of product items,suitbale for multi variety and small batch production of granular packaging forms in today's industrial production environmen

Optional Series

FAQ

Q:Are you a factory or trading company?
A:We are an manufacture and trade integration company.

Q:Where is your factory and how can we visit you?

A:We are located in Dongguan,near Guangzhou and Shenzhen,only 1hour from airport.

Q:What's your product range?
A:Suitable for counting and packing of various hardware,plastic, and electronic components.

Q:What's the service and guarantee can you offer?
A:One year guarantee for main parts and replacement of machine, free technical support for lifelong.

Q:Why we should choose your company?
A:We are professional in counting and packing machines for 7 years, we have lots of customer case and solutions for different product lines.

After-Sales Service
1.Online Instruction, We open online services, as long as your equipment fails, our engineers will be the first time for one-to-one troubleshooting.
2.The warranty would be one year. The damaged one (not include the part which is made damaged by man) can be changed by the supplier, but the demand-side needs to burden the transportation fee.
3.The supplier will provide the spare parts of the machine and support for technology for the good.
4.Technical support for lifelong, support parts can be customized brand.

Remark: please confirm with our sales-person about the final price.
